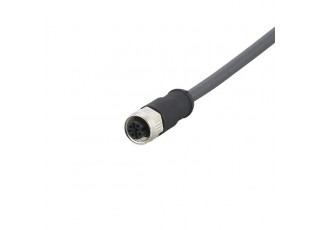

E12638 Connecting cable with socket ADOGH040MSS0005C04
- Brand:IFM ELECTRONIC
- Product Code: E12638
- Availability: Out Of Stock
- High protection rating for the requirements of harsh industrial environments
- Permanent, reliable sealing even when mounted without tools
- Wide operating temperature range
- Good electromagnetic compatibility thanks to shielded cable
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...85 | |
|---|---|---|
| Note on ambient temperature |
| |
| Protection | IP 67 |
Mechanical data
| Weight [g] | 269.7 | ||
|---|---|---|---|
| Dimensions [mm] | 28 x 15 x 38 | ||
| Materials | TPU | ||
| Moulded-body material | TPU | ||
| Material nut | diecast zinc | ||
| Drag chain suitability | yes | ||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PUR, Halogen-free, black, Ø 5 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - socket
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen not connected |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12638-00 — 15.05.2019 —
