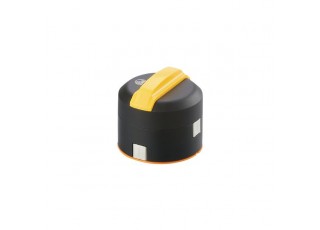

E12517 - PUCK 53MM BASIC
- Brand:IFM ELECTRONIC
- Product Code: E12517
- Availability: Out Of Stock
- For monitoring valve positions
- For reliable position feedback on valve actuators
- Easy mounting directly on the shaft of the drive
- Non-contact and self-cleaning system
- Ring with damping elements can be rotated by 90°
Application
| Design | for mechanical interfaces to pneumatic actuators or manually-operated valves VDI / VDE 3845, ISO 5211 / DIN 3337 |
|---|
Mechanical data
| Weight [g] | 60.5 |
|---|---|
| Target puck diameter [mm] | 53 |
| Hole spacing [mm] | 80 |
| Shaft height of valve drive [mm] | 30 |
| Materials | target puck: PA 6 black; metal parts: stainless steel |
| Tightening torque [Nm] | 2.5...3 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
