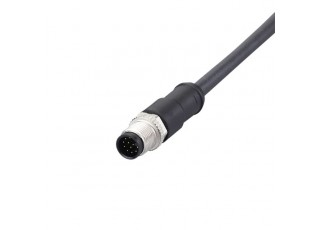

E12455 - ecomat400-ASTGH120MSS0005H12
- Brand:IFM ELECTRONIC
- Product Code: E12455
- Availability: Out Of Stock
- Reliable connection of controllers and dialogue units
- Wide operating temperature range
- Suited for use in mobile machines
- High protection rating for the requirements of harsh industrial environments
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 2 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Ambient temperature (moving) [°C] | -5...70 |
| Protection | IP 68 |
Mechanical data
| Weight [g] | 329.5 |
|---|---|
| Dimensions [mm] | 14.5 x 14.5 x 48.4 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PUR, black, Ø 6.5 mm; 12 x 0.25 mm² (19 x Ø 0.13 mm ) |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; Moulded body: PUR; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
|---|
