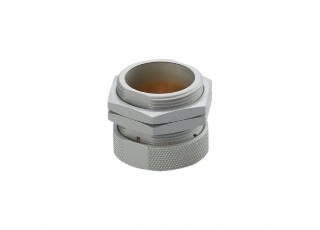

E12454 - efector100-FIXING/M30/NT/K1/COATED/END STOP
- Brand:IFM ELECTRONIC
- Product Code: E12454
- Availability: Out Of Stock
- End stop for defined installation position
- For mounting cylindrical sensors
- Easy and quick replacement without readjustment
- Reliable protection against damage
- Resistant to weld slag thanks to non-stick coating
Application
| Special feature | anti-spatter |
|---|---|
| Design | with end stop |
Mechanical data
| Weight [g] | 118.5 |
|---|---|
| Installation instruction | align the sensing face of the sensor to the right (see scale drawing); due to the material brass, negative sensing range reductions may occur (reduced sensing range) |
| Dimensions [mm] | M36 x 1.5 |
| Thread designation | M36 x 1.5 |
| Inside diameter [mm] | 30 |
| Materials | brass anti-spatter; Nuts: brass anti-spatter |
| Tightening torque [Nm] | 7; (lock nuts: 20) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Installation | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12454-00 — 17.03.2023 —
