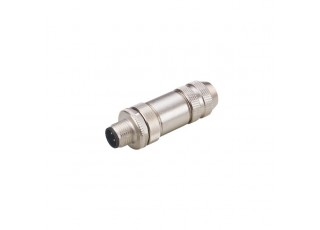

E12355 - ecomat400-SSTGH040MSSFKSG
- Brand:IFM ELECTRONIC
- Product Code: E12355
- Availability: Out Of Stock
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
- Good electromagnetic compatibility thanks to placeable cable shield
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 45 AC / < 70 DC |
|---|---|
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 44.4 |
|---|---|
| Dimensions [mm] | 20.2 x 20.2 x 63 |
| Materials | diecast zinc nickel-plated |
| Moulded-body material | diecast zinc, nickel-plated |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| screw terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: B; Moulded body: diecast zinc, nickel-plated; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: shieldable |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12355-00 — 21.02.2013 —
