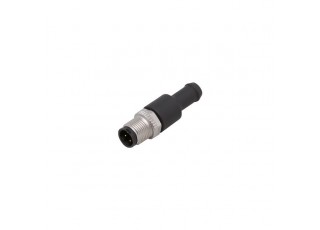

E12315 - ecomat400-ProfiBus Terminat. Resistor
- Brand:IFM ELECTRONIC
- Product Code: E12315
- Availability: Out Of Stock
- Reliable connection technology for PROFIBUS participants
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Gold-plated contacts for reliable electrical connections
- Good electromagnetic compatibility thanks to shielded cable
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Max. current load total [A] | 4; (...40 °C) |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 9.9 |
|---|---|
| Dimensions [mm] | 14.5 x 14.5 x 48.5 |
| Materials | PUR |
| Moulded-body material | PUR |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: B; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12315-00 — 13.01.2012 —
