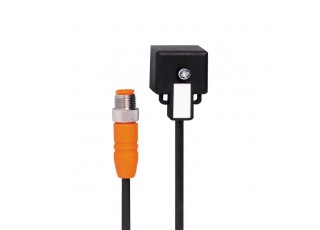

E11277 - ecomat400-VVDAA040MSS0,75H03STGH020MSS
- Brand:IFM ELECTRONIC
- Product Code: E11277
- Availability: Out Of Stock
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Robust rectangular connectors
Application
| Application | current measurement |
|---|
Electrical data
| Operating voltage [V] | < 24 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...90 |
|---|---|
| Protection | IP 67; IP 69K |
Mechanical data
| Weight [g] | 85 |
|---|---|
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm |
Electrical connection
| Connection | Cable: 0.75 m, PUR; 2 x 0.75 mm² |
|---|
Electrical connection - socket
| Connector: 1 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm |
