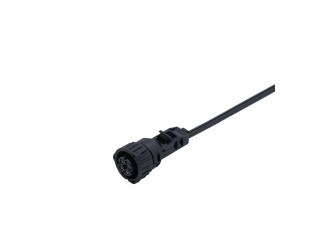

E11273 - ecomat400-ADOGR040PLS0002H
- Brand:IFM ELECTRONIC
- Product Code: E11273
- Availability: Out Of Stock
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | 9.6...30 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67; IP 69K |
Mechanical data
| Weight [g] | 106.5 |
|---|---|
| Dimensions [mm] | 30 x 30 x 68 |
| Materials | Hytrel G-4774 |
| Moulded-body material | Hytrel G-4774 |
| Material nut | Hytrel G-4774 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PUR, Halogen-free, black; 4 x 0.5 mm² |
Electrical connection - socket
| Connection | Connector: 1 x bayonet, straight; Moulded body: Hytrel G-4774; Locking: Hytrel G-4774 |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11273-00 — 05.11.2020 —
