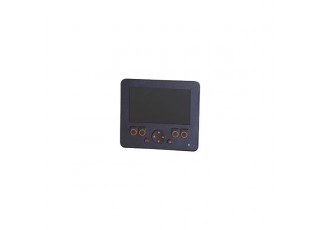

CR9222 Programmable graphic display for controlling mobile machines R360/BasicDisplay XL/Clear
- Brand:IFM ELECTRONIC
- Product Code: CR9222
- Availability: Out Of Stock
- Robust HMI for fast and simple installation
- Optimised for cost-efficient system solutions
- High-performance CAN interfaces for various communication tasks
- User-friendly handling by means of backlit function keys with tactile feedback
- Freely programmable to IEC 61131-3 with CODESYS 2.3
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|
Software / programming
| PLC function to IEC 61131-3 | yes |
|---|
Interfaces
| Number of CAN interfaces | 1 |
|---|
Mechanical data
| Weight [g] | 291 |
|---|---|
| Type of mounting | panel / surface |
| Dimensions [mm] | 109.5 x 124.5 x 40.5 |
Displays / operating elements
| Display |
| ||||
|---|---|---|---|---|---|
| Operating elements |
| ||||
| Display resolution | 480 x 272 | ||||
| Display type | colour display | ||||
| Display size | 4.3" | ||||
| Display background illumination | LED |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 1 x M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR9222-00 — 25.10.2017 —
