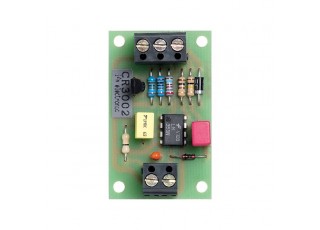

CR3002 PWM to analogue signal converter R360/PWM-ANALOG-MODULE/PCB
- Brand:IFM ELECTRONIC
- Product Code: CR3002
- Availability: Out Of Stock
- Conversion of a PWM signal into an analogue output signal
- Precise linearised voltage output
- Simple connection via screw terminals
- For mobile vehicles
- Wide operating temperature range
Application
| Design | PCB module |
|---|
Electrical data
| Operating voltage [V] | 24...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Inputs
| Number of PWM inputs | 1 |
|---|---|
| PWM frequency inputs [Hz] | 122; (24 V DC PWM signal) |
Outputs
| Number of analogue outputs | 1 |
|---|---|
| Analogue voltage output [V] | 0...10 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|
Mechanical data
| Weight [g] | 37 |
|---|---|
| Dimensions [mm] | 49 x 30 x 15 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| input | screw terminals: 2.5 mm² |
|---|
Diagrams and graphs
| | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3002-00 — 14.12.2012 —
