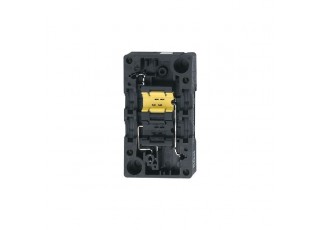

AC5003 Lower part for AS-Interface module MODULE LOWER PART
- Brand:IFM ELECTRONIC
- Product Code: AC5003
- Availability: Out Of Stock
- AS-i interface to module upper part
- Reliable connection to the AS-i flat cable thanks to quick mounting technology
- For mounting on DIN rail and panel
- High protection rating for the requirements of harsh industrial environments
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Additional voltage supply [V] | 24 DC |
Outputs
| Electrical design | AS-i |
|---|---|
| Contact rating | < 2 A |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67; (depending on the upper part used: IP 20 / IP 65 / IP 67) |
Mechanical data
| Weight [g] | 59.5 |
|---|---|
| Type of mounting | mounting on DIN rail and panel |
| Dimensions [mm] | 45 x 80 x 20 |
| Materials | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| contact pins in module upper part : |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC5003-00 — 10.10.2003 —
