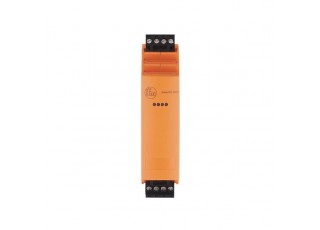

AC3226

AC3226

  • Brand:IFM ELECTRONIC
  • Product Code: AC3226
  • Availability: Out Of Stock
  • For extending the cable length in the AS-i network
  • For use in control cabinets
  • Simple and fast wiring by means of COMBICON connector with screw terminals
  • Particularly space-saving design
  • Clearly visible LEDs for indicating operation and fault
Application
Application extension of the AS-i network by another 100 m
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current consumption from AS-i [mA] 60; (per AS-i line)
Outputs
Electrical design AS-i
Electrically separated yes
Operating conditions
Ambient temperature [°C] -25...70
Note on ambient temperature
cULus: ... 65 °C
Storage temperature [°C] -25...75
Max. relative air humidity [%] 90; (non condensing)
Max. height above sea level [m] 2000
Protection IP 20
Pollution degree 2
Tests / approvals
EMC
EN 62026-2
UL approval
Ta -25...70 °C
Enclosure type IP20
power supply Low Voltage / Limited Energy
File number UL E205959
Mechanical data
Weight [g] 170
Type of mounting mounting on DIN rail
Materials PA 6.6
Displays / operating elements
Display
operation 2 x LED, green
function LED, yellow
Accessories
Items supplied
COMBICON connectors
Link for bus termination
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC3226-00 —
