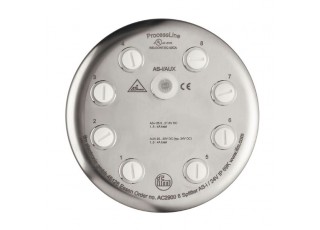

AC2900 - ecomat300-ProcessLine 8 SB IP69K
- Brand:IFM ELECTRONIC
- Product Code: AC2900
- Availability: Out Of Stock
- Specially for the use in wet areas of the food and beverage industry
- Hygienic design without corners and edges
- Resistant to high-pressure cleaning with aggressive cleaning agents
- AS-i and 24 V supply via a common M12 connector
Application
| Application | hygienic and wet areas in the food industry |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current load per module/slot [A] | 4; (AS-i: 4 A; AUX: 4 A) |
| Additional voltage supply [V] | 20...30 DC; (AUX) |
Operating conditions
| Ambient temperature [°C] | -5...70 |
|---|---|
| Storage temperature [°C] | -5...70 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 68; IP 69K |
| Pollution degree | 2 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 613.5 |
|---|---|
| Dimensions [mm] | Ø 137.3 / L = 80 |
| Materials | housing: stainless steel; O-ring: EPDM; Protective caps: PP |
| Sealing material | EPDM |
Electrical connection
| Module connection | M12 |
|---|
Accessories
| Items supplied |
| |
|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M12; coding: A; Sealing: EPDM; Tightening torque: 1.2...1.4 Nm |
Electrical connection - socket
| Connector: 8 x M12; coding: A; Sealing: EPDM; Tightening torque: 1.2...1.4 Nm |
