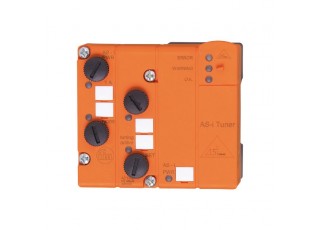

AC1146 - ecomat300-AS-i Tuner IP67

AC1146 - ecomat300-AS-i Tuner IP67

  • Brand:IFM ELECTRONIC
  • Product Code: AC1146
  • Availability: Out Of Stock
  • For checking the AS-i network
  • For reliably monitoring the message quality
  • Clearly visible LEDs for indicating communication status and operation
  • Cable extension by a further 200 metres without additional repeater
  • Can be used in any network topology
Application
Application diagnostic tool for AS-i
Electrical data
Nominal voltage DC [V] 26.5...31.6
Max. current consumption from AS-i [mA] 60
Reverse polarity protection yes
Undervoltage monitoring yes
Operating conditions
Ambient temperature [°C] 0...55
Protection IP 67
Tests / approvals
MTTF [years] 140
Mechanical data
Weight [g] 199.2
Materials PBT
Displays / operating elements
Display
operation LED, green
warning LED, yellow
errors LED, red
Accessories
Accessories (optional)
Module lower part:, AC5000
Remarks
Remarks
no addressing required
current rating of the AS-i distribution socket max. 1 A
Pack quantity 1 pcs.
Electrical connection
contact pins to module lower part, FK:
Connector: M12; coding: A
