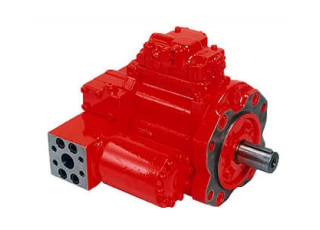

Kawasaki K3VG series
- Brand:Kawasaki
- Product Code: K3VG
- Availability: Out Of Stock
The K3VG series are variable displacement axial piston pumps of swash plate design for industrial equipment.
The K3VG series are available in size ranging from 63 to 560 cm3/rev with various control options including a highly precise electro-hydraulic servo regulator "ILIS".
Features
- High Pump Efficiency
- Wide range of control options
- Low Noise
- Compatible with fire-resistant fluid
- Long Life
- Varieties of Control Methods
| Model | K3VG 63 |
K3VG 112 |
K3VG 180 |
K3VG 280 |
K3VG 180DT |
K3VG 280DT |
|
|---|---|---|---|---|---|---|---|
| Displacement (cm3) | 63 | 112 | 180 | 280 | 360 | 560 | |
| Pressure (MPa) | Rated | 34.3 | |||||
| Peak | 39.2 | ||||||
| Max Self Priming Speed (min-1) | 1,800 | 1,200 | 1,800 | 1,200 | |||
| Mass (approx.) (kg) | 48 | 68 | 86 | 160 | 160 | 300 | |
