Valve connector CI type VC9S22-T80E-2-RSC5.31T/TEL
- Brand:TURCK
- Product Code: 6606934
- Availability: Out Of Stock
- Cable length (m)
- 2
- Application
- Signal
- Design
- Extension Cable

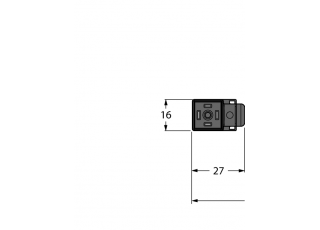

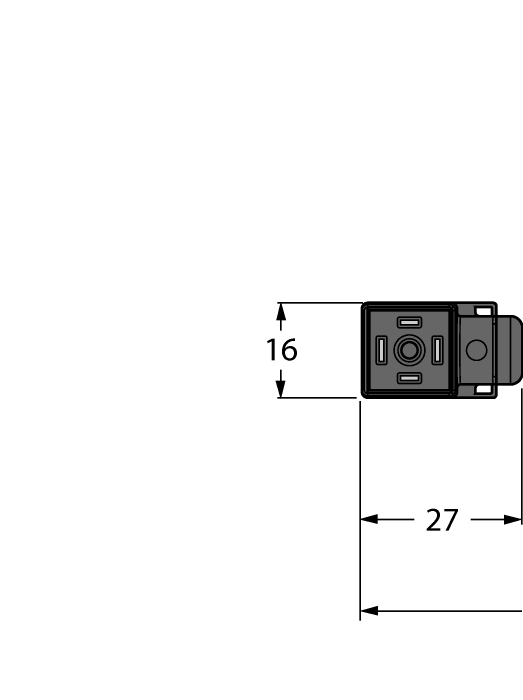

- Connector A
- Valve connector, Design CI
- Number of pins
- 2+PE, PE bridged

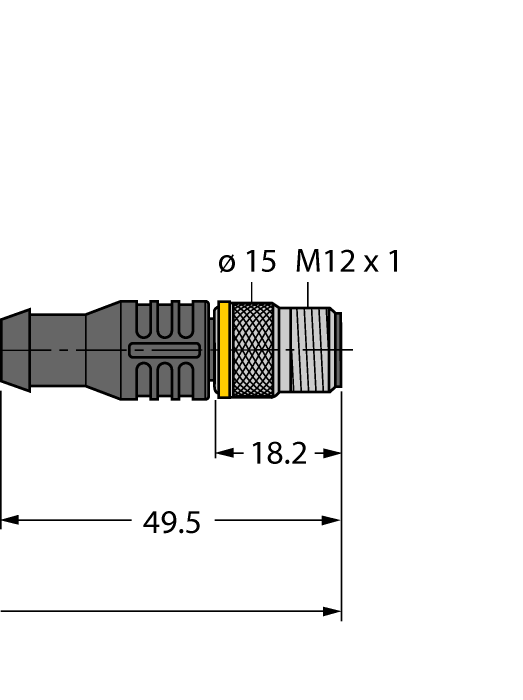

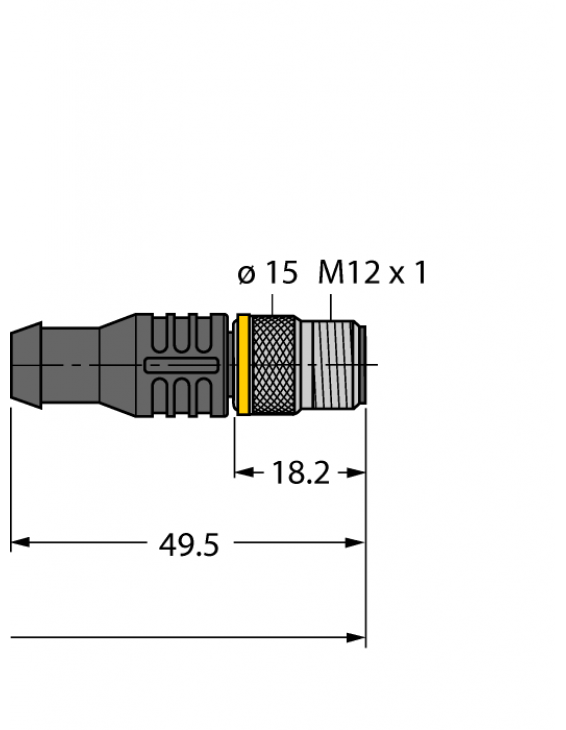

- Connector B
- Male, M12 × 1, Straight
- Number of Pins
- 2+PE
- Coupling nut/screw material B
- Brass
- Voltage (V)
- 24
- Current (A)
- 4
- Cable quality
- PVC
- Cable color
- Black
- Ambient temperature min. (°C)
- 0
- Ambient temperature max. (°C)
- 80
- Core cross-section (mm²)
- 0.34
- Number of Conductors
- 3
