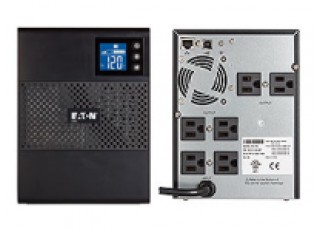

Eaton 5SC750 uninterruptible power supply (UPS) 750 VA 525 W 6 AC outlet(s)

Eaton 5SC750 uninterruptible power supply (UPS) 750 VA 525 W 6 AC outlet(s)

  • Brand:Eaton Vickers
  • Product Code: 5SC750
  • Availability: Out Of Stock
The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton’s Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
More information:
Weight & dimensions
Width
150 mm
Depth
340 mm
Height
209 mm
Weight
10500 g
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
5 min
Typical backup time at half load
13 min
Cold start
Yes
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90 %
Design
Form factor
Tower
Product colour
Black
Cable length
1.8 m
LED indicators
Yes
Display
LCD
RoHS compliance
Yes
Safety
CE/cULus/NOM
Certification
IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A
Features
Output power capacity
750 VA
Output power
525 W
Waveform
Sine
Input operation voltage (min)
96 V
Input operation voltage (max)
144 V
Input frequency
50/60 Hz
Efficiency
94 %
Noise level
55 dB
Ports & interfaces
AC outlet types
NEMA 5–15R
Power plug
NEMA 5-15P
AC outlets quantity
6 AC outlet(s)
USB 2.0 ports quantity
1
RS-232 ports
1
Other features
Nominal output voltage
120 V
Nominal input voltage
120 V
