Pick-to-Light PVD225Q
- Brand:TURCK
- Product Code: 3070991
- Availability: Out Of Stock
- Protection class
- IP62
- Switching element function
- NO/NC
- Output function
- PNP/NPN
- Cable length (m)
- 2
- Design
- Rectangular
- Electrical connection
- Cable with connector
- Connector type
- M12 × 1
- Housing material
- Metal
- Housing quality
- AL
- Ambient temperature min. (°C)
- 0
- Ambient temperature max. (°C)
- 50
- Max. range (mm)
- 400
- Function
- Retroreflective sensor or proximity switch
- Operating voltage
- DC
- Input type
- Bipolar (PNP/NPN)
- Scan field (mm)
- 225
- Optical resolution (mm)
- 28.6
- Light type
- Red

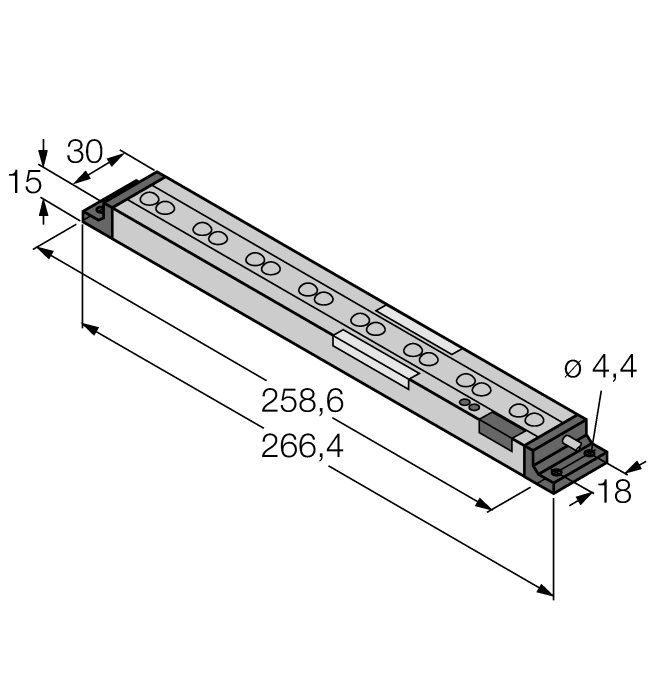

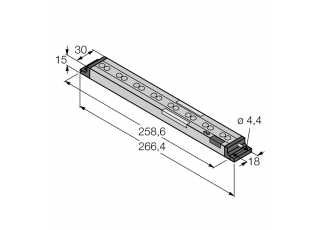

- Construction size
- 266.4 x 30 x 15 mm
- Number of colors/segments
- 2
- Number of beams
- 8
