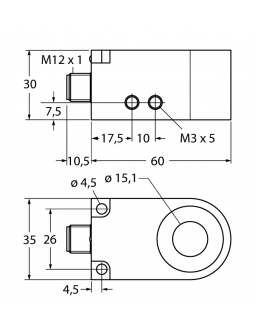

Inductive Sensor BI15R-W30-DAP6X-H1141
Protection classIP67Switching element functionNO contactOutput functionPNPDesignRing sensorElectrical connectionConnectorConnector typeM12 × 1Housing materialPlasticHousing qualityPA12-GF30Ambient temperature min. (°C)-25Ambient temperature max. (°C)70Inside ring diameter D (mm)15.1Operating voltage...

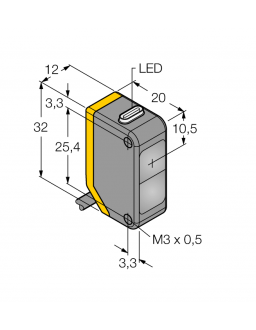

Photoelectric Sensor Q20PRL
Protection classIP67Switching element functionComplementary contactOutput functionPNPCable length (m)2DesignRectangularElectrical connectionCableHousing materialPlasticHousing qualityThermoplastic materialAmbient temperature min. (°C)-20Ambient temperature max. (°C)60Max. range (mm)20000FunctionOppo...

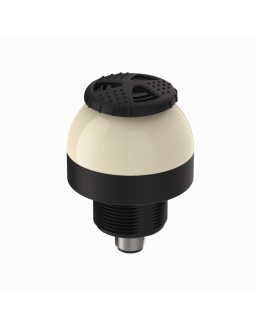

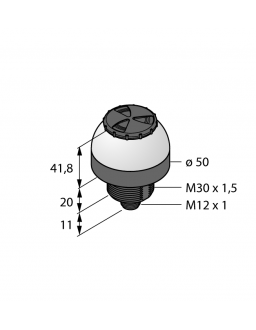

LED Signal Light K50LGRALS4YPQ
Protection classIP67DesignDomeElectrical connectionConnectorConnector typeM12 × 1Housing materialPlasticHousing qualityPC, Thermoplastic materialAmbient temperature min. (°C)-20Ambient temperature max. (°C)50FunctionSpotlightInput typePNPLight typeGreen, Red, YellowNumber of colors/segments3Acoustic...
LED Linear Light WLS28-2CW1130DXQ
Protection classIP50DesignRectangularElectrical connectionConnectorConnector typeM12 × 1Housing materialMetalHousing qualityALAmbient temperature min. (°C)-40Ambient temperature max. (°C)70Beam anglewide beam 40-80°FunctionLinear lightLight typeWhiteConstruction size1181 x 28 x 21 mmNumber of colors...
Image Processing IVU2PTGG12
Protection classIP67DesignRectangularCommunication protocolEtherNet/IP, Modbus TCP, PCCC, PROFINET, RS232Electrical connectionConnectorConnector typeM12 × 1Housing materialPlasticHousing qualityThermoplastic materialAmbient temperature min. (°C)0Ambient temperature max. (°C)50FunctionGray valueOpera...

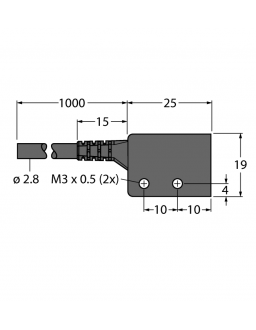

Plastic Fiber PIR1X323T-VL
Function accessories forPhotoelectric sensorsDesignRectangularHousing materialPlasticHousing qualityPEAmbient temperature min. (°C)-30Ambient temperature max. (°C)70FunctionOpposed mode sensor (emitter/receiver)Accessory typePlastic fiberScan field (mm)14.5.....

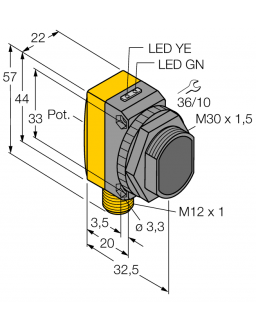

Photoelectric Sensor QS30LPQ
Protection classIP67Switching element functionNO contactOutput functionPNP/NPNDesignRectangular with threadElectrical connectionConnectorConnector typeM12 × 1Housing materialPlasticHousing qualityThermoplastic materialAmbient temperature min. (°C)-20Ambient temperature max. (°C)70Max. range (mm)8000...
Inductive Sensor NI15-P30SR-FZ3X2
Protection classIP67Switching element functionConnection programmableOutput function2-wireDesignThreaded barrelElectrical connectionTerminal chamberHousing materialPlasticHousing qualityABSAmbient temperature min. (°C)-25Ambient temperature max. (°C)70Mounting conditionsNon-flushOperating voltageACR...

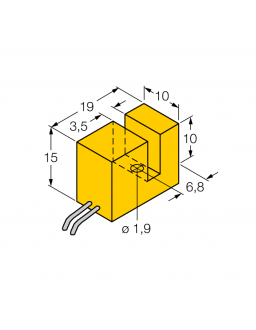

Inductive Sensor SI3.5-K10-Y1
Protection classIP67Output functionNAMURCable length (m)0.5DesignSlot sensorElectrical connectionCableHousing materialPlasticHousing qualityPBT-GF30-V0Ambient temperature min. (°C)-25Ambient temperature max. (°C)70Operating voltageDCSlot width (mm)3.5Construction size19 x 15 x 10 mm.....
Ultrasonic Sensor T18VP6UR
Protection classIP67Switching element functionComplementary contactOutput functionPNPCable length (m)2DesignRectangular with threadElectrical connectionCableHousing materialPlasticHousing qualityPBTAmbient temperature min. (°C)-40Ambient temperature max. (°C)70Max. range (mm)600FunctionOpposed mode ...
Barcode Reader — Image Sensor IVU2PRB612
Protection classIP67DesignRectangularCommunication protocolEtherNet/IP, Modbus TCP, PCCC, PROFINET, RS232Electrical connectionConnectorConnector typeM12 × 1Housing materialPlasticHousing qualityThermoplastic materialAmbient temperature min. (°C)0Ambient temperature max. (°C)50FunctionBarcode reader ...

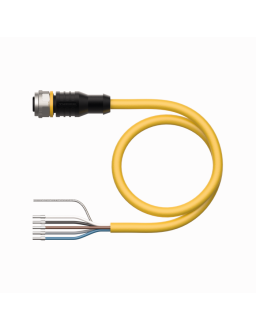

RFID Cable Standard Version RK4.5T-2/S2500
Cable length (m)2ApplicationRFIDDesignConnection CableConnector AFemale, M12 × 1, Straight, A-codedNumber of pins5Coupling nut/screw material ABrassVoltage (V)30Cable qualityPURCable colorYellowAmbient temperature min. (°C)-25Ambient temperature max. (°C)80Core cross-section (mm²)0.25Number of Condu...
