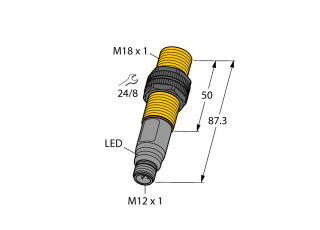

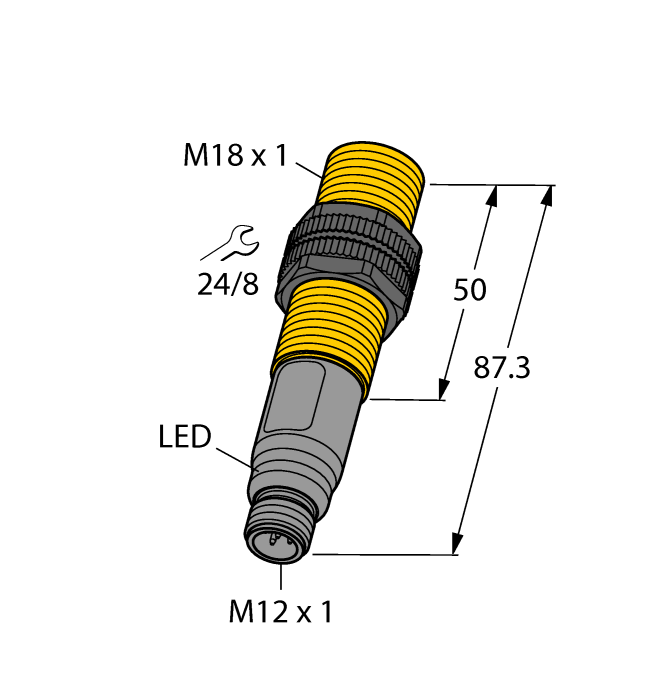

Capacitive Sensor BCT5-S18-UP6X2-H1151
- Brand:TURCK
- Product Code: 2101300
- Availability: Out Of Stock
- Protection class
- IP67, IP69K
- Switching element function
- NO/NC
- Output function
- PNP
- Approvals
- UL
- Design
- Threaded barrel
- Communication protocol
- IO-Link
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Plastic
- Housing quality
- PA12-GF30, PEI
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 70
- Measuring principle
- Capacitive
- Mounting conditions
- Flush
- Operating voltage
- DC
- Rated switching distance (mm)
- 7.5
- Construction size
- M18 x 1
