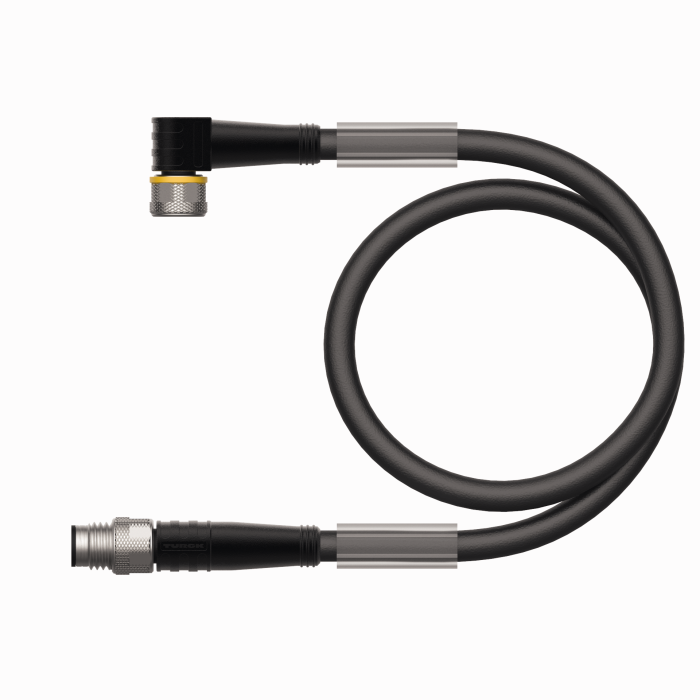

Actuator and Sensor Cable Suitable for Use with Robots PKW4M-1-PSG4M/TRL
- Brand:TURCK
- Product Code: 6543160
- Availability: Out Of Stock
- Cable length (m)
- 1
- Application
- Signal
- Design
- Extension Cable
- Connector A
- Female, M8 × 1, Angled
- Number of pins
- 4
- Coupling nut/screw material A
- Brass
- Connector B
- Male, M8 × 1, Straight
- Number of Pins
- 4
- Coupling nut/screw material B
- Brass
- Current (A)
- 4
- Cable quality
- PUR
- Cable color
- Black
- Special features
- Suitable for use with robots
- Approvals
- cULus, CE, UKCA
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 80
- Core cross-section (mm²)
- 0.34
- Number of Conductors
- 4
